Hydraulic Vibroflot with 220 kN Centrifugal Force 20 m³/min Air Compressor and 500-800 mm Diameter for High Compaction Efficiency

Hydraulic Vibroflot with 220 kN Centrifugal Force 20 m³/min Air Compressor and 500-800 mm Diameter for High Compaction Efficiency

220 kN Centrifugal Force Hydraulic Vibroflot

20 m³/min Air Compressor Vibroflotation Equipment

500-800 mm Diameter Hydraulic Vibroflotation Machine

원래 장소:

중국

브랜드 이름:

BVEM

인증:

CE、ISO 9001:2000、ISO 9001:2008

모델 번호:

BJVH-350-150

연락주세요

인용문을 요구하세요
제품 상세정보
vibroflot 전원:
150kW
최대 깊이:
모델에 따라 다름
원심력:
220 kN
공기 압축기:
20M³/분
바이브로플로트 직경:
500-800 밀리미터
파워팩:
176킬로와트
외경:
350mm
보증:
1년 또는 2000시간 중 먼저 도래하는 기준
지불과 운송 용어
최소 주문 수량
1
가격
35000 $
포장 세부 사항
나무 케이스
배달 시간
30-45 일
지불 조건
신용장, 티/티
공급 능력
600세트/년
관련 상품
연락주세요
86-010-69592173
지금 접촉하세요
제품 설명
Hydraulic Vibroflot with 150Kw Power and High Compaction Efficiency for Soil Improvement ISO 9001 Certified
With over 50 years of dedication to the vibroflotation industry, BVEM has focused on R&D and investment in vibroflotation products. Our BJVH-350-150 hydraulic vibroflot represents the culmination of technical expertise and innovation, delivering high-efficiency, stable performance for demanding vibroflotation projects.
Working Principle

This hydraulic vibroflot efficiently converts hydraulic energy into mechanical energy (rotational motion) through a hydraulic motor, driving the eccentric block to generate strong horizontal excitation force.

  • Large output torque for demanding applications
  • Wide speed regulation range with stepless control
  • Excellent impact load resistance
  • Stable power output for consistent performance
Key Features
  • 0-2900rpm stepless speed regulation: Flexible operation matching various construction requirements and soil conditions
  • Wide stratum compatibility: Optimized design provides strong penetration in both soft soil and gravel-containing strata
  • Continuous high-power output: Ensures stable operation and improved project efficiency
  • Water-cooled motor not required: Enables dry method environmental protection construction
  • High adaptability: Compatible with various equipment including pump stations, rotary drilling rigs, excavators, and pile frames
Certifications
CE Certified ISO 9001 Made in China
Applications

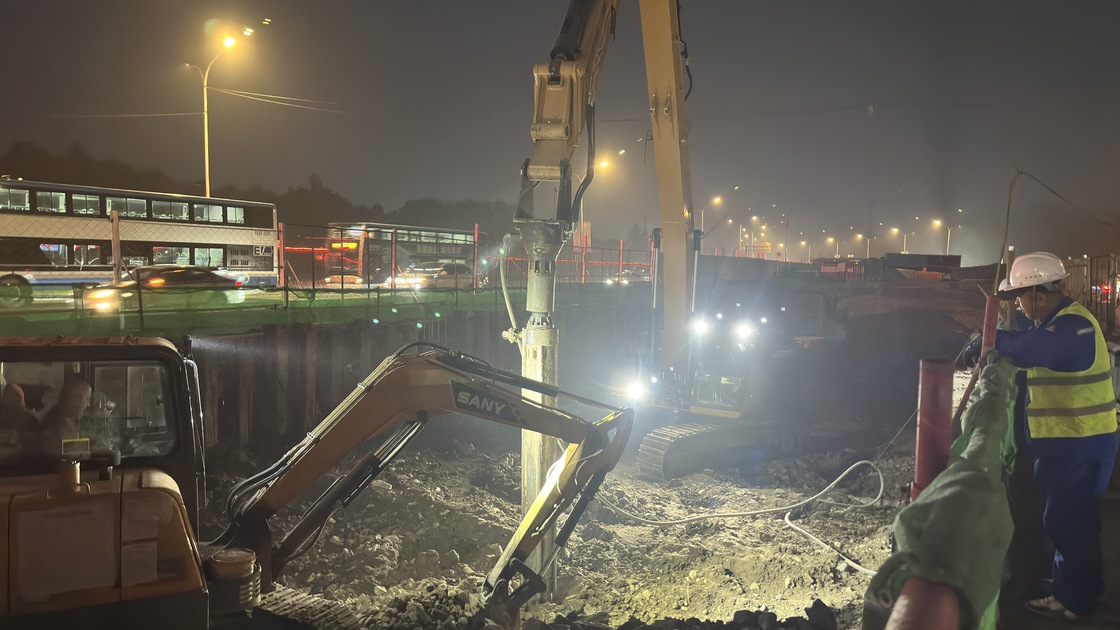

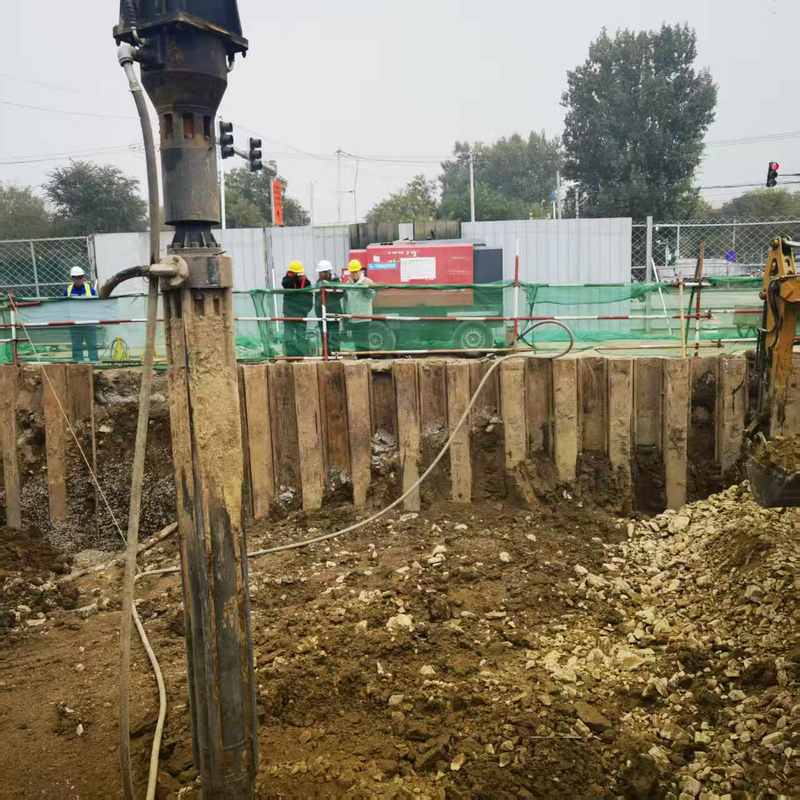

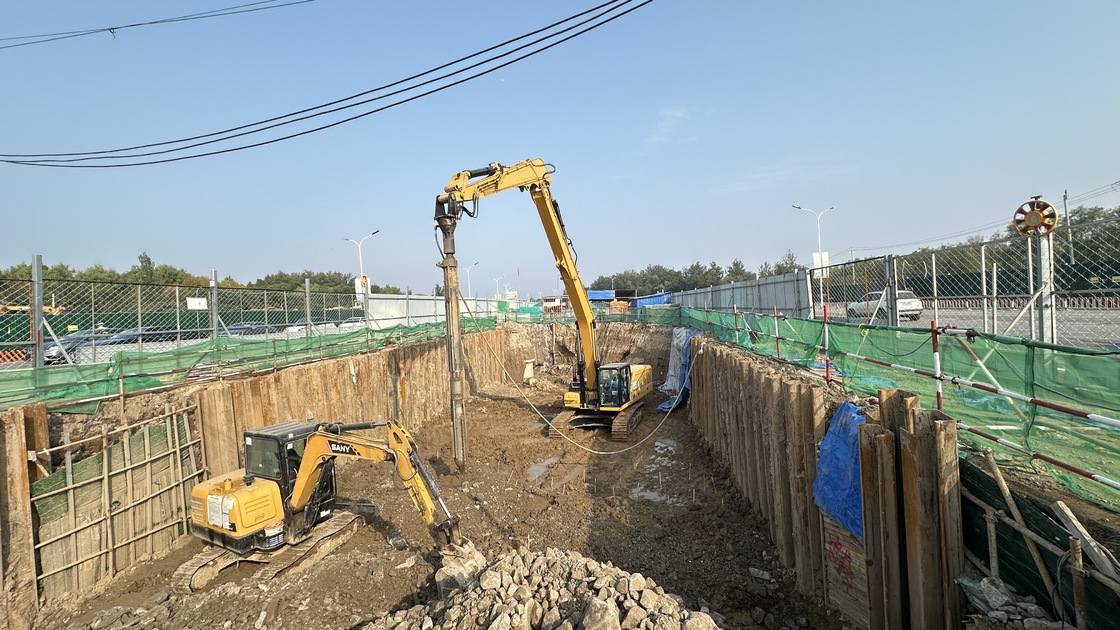

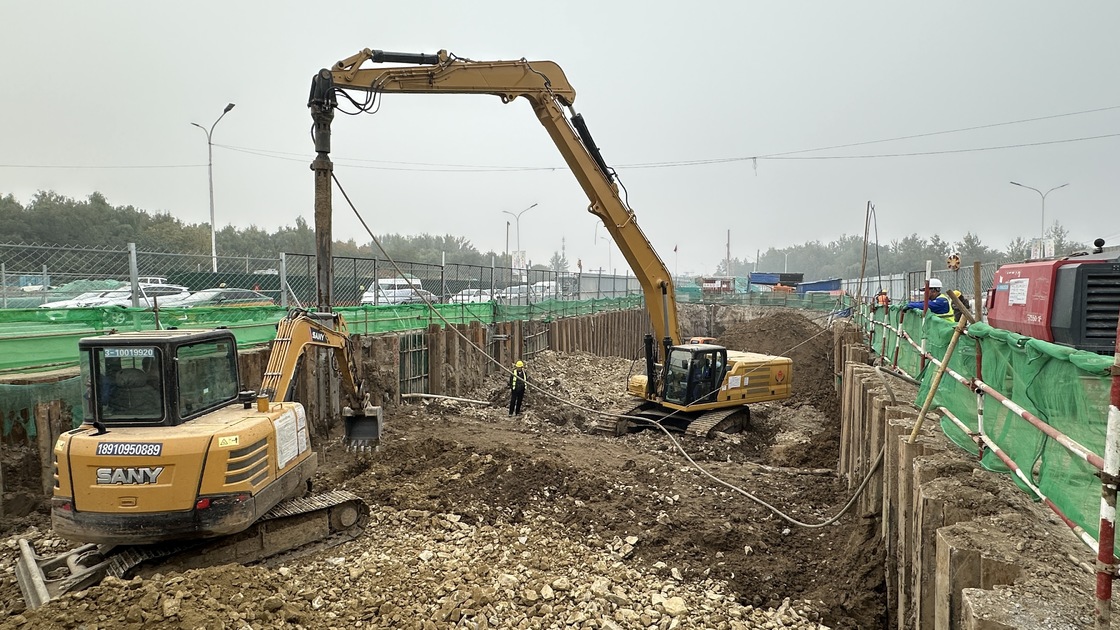

The BVEM Hydraulic Vibroflot (Model: BJVH-350-150) is designed for soil improvement across multiple construction scenarios:

  • Foundation Construction: Compacts soil to ensure stable building foundations
  • Road and Highway Projects: Enhances soil strength and reduces settling for durable infrastructure
  • Retaining Wall Installation: Improves soil stability and prevents erosion
Technical Evolution

BVEM has pioneered advancements in vibroflot technology, including:

  • Transition from electric to hydraulic driving systems
  • Development of both orifice filling and bottom discharge models
  • Expansion of mounting scenarios for diverse construction needs

This equipment provides contractors and engineers with a reliable, high-performance solution for soil improvement projects, combining quality construction with operational efficiency.
